Das Original, bewährt und zuverlässig.

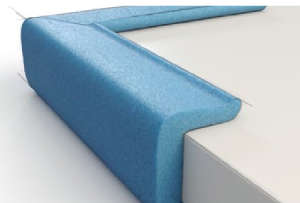

NOMAPACK® U TULIP
VPE: 2040 x 590 x 390mm; 4 Kartons pro Palette
| Typ | A mm | B mm | C mm | D mm | VPE m | ID | Art. Nr. |
|---|---|---|---|---|---|---|---|
| 5 – 15 | 16 ±2 | 7 ±1 | 3 ±3 | 29 ±2 | 560 | 3002243 | 6900186N |
| 15 – 25 | 24 ±2 | 8 ±1 | 10 ±3 | 35 ±3 | 320 | 3002250 | 6900185 |
| 25 – 35 | 35 ±2 | 10 ±1 | 20 ±4 | 40 ±3 | 240 | 3002257 | 6900047 |
| 35 – 45 | 41 ±2 | 12 ±2 | 25 ±5 | 46 ±3 | 180 | 3002261 | 6900048N |
| 45 – 60 | 57 ±2 | 14 ±2 | 30 ±5 | 60 ±2 | 100 | 3002267 | 6900103 |
| 60 – 80 | 71 ±2 | 15 ±2 | 45 ±5 | 66 ±2 | 80 | 3002279 | 6900039N |
| 80 – 100 | 92 ±3 | 18 ±2 | 60 ±10 | 68 ±3 | 72 | 3002288 | 6900040 |
| 100 – 120 | 120 ±4 | 21 ±2 | 98 ±10 | 80 ±3 | 44 | 3002289 | 6900227 |
VPE: 1200 x 460mm; 4 Spulen pro Palette
| Typ | A mm | B mm | C mm | D mm | VPE m | ID | Art. Nr. |
|---|---|---|---|---|---|---|---|
| 5 – 15 | 16 ±2 | 7 ±1 | 3 ±3 | 29 ±2 | 500 | 3002241 | 6900424 |
| 15 – 25 | 24 ±2 | 8 ±1 | 10 ±3 | 35 ±3 | 220 | 3002248 | 6900493 |
